Feature Article: An Event Visualizer for CAB

The last three articles in this newsletter have dealt with the Composite UI Application Block and its Smart Client Software Factory. I've been teaching so much in that arena lately that I'm going to continue the trend in this article, discussing a problem that crops up in essentially every class that I teach on the topic, that of visualizing the internals of the CAB framework during the development process.

The CAB Event Broker service is a very popular object. Programmers use its loosely-coupled publish and subscribe event system for many purposes, from setting the status bar label text to specifying the order in which the shared user interface is modified. When I debug a CAB program and an event doesn't seem to be doing what it's supposed to do, the first thing I do is to check to see if it's getting fired or not, because sometimes it isn't. Checking this is sometimes difficult, depending on where the firing code lives. So I figured I'd write an event spy program, as I once did for the COM+ system back in 1999. (see this link here).

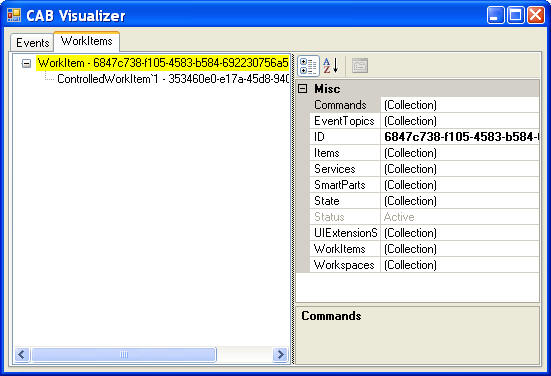

To host my spy programs visual elements and to connect it to the CAB framework, I decided to use the CAB Visualizer mechanism. Perhaps you've seen the WorkItem sample visualizer, which shows you all the WorkItems in the system, thus:

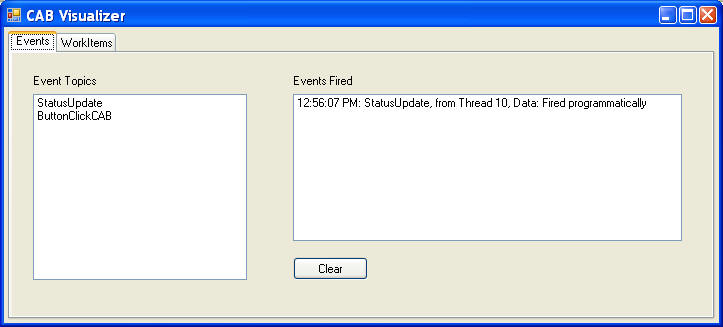

This visualizer shows you all of the WorkItems' collections, including the event topics, but it doesn't show you when an event gets fired. That's what I decided to write. Here's what it looks like. The event topics are show in the left-hand list box. When an event gets fired, the time, the event name, the thread from which it is fired, and the data that it passes are shown in the right-hand list box. I was surprised how easy this was to write, which I hope will inspire you to write other CAB visualizers. I've placed the code online, you can download at by clicking on this link.

A visualizer is, first and foremost, a control, so I started by deriving from UserControl. When the shell application creates its visualizers, it looks in its config file (see later in this article) for the list of them and creates one of each class that it finds. Since the control is being created by the CAB framework, we can request dependency injection in the same manner as any other CAB objects. In this case, my injection constructor requests the IVisualizer interface, which contains references to application's root work item and the CAB object builder, and the visualizer's own WorkItem.

Since the visualizer is a control, we have to show it in a workspace. The visualizer's own WorkItem provides a workspace called "MainWorkspace", which is of class TabWorkspace. It's not on the application's root WorkItem, so you can't see it there, and the WorkItem visualizer doesn't display its own WorkItem, so you can't see it there either. But it does exist, for the express purpose of holding visualizer resources. In this sample, we find the workspace by means of its name, and place our control into it.

I want to display all events that get fired in the CAB application. To do this, I need to add a subscription to each event. To be notified when a new EventTopic object is added to the root WorkItem, I set up a handler on the EventTopics collection, for the .NET tightly-coupled event named Added. The root WorkItem is on the IVisualizer interface that I was passed in the injection constructor. This handler gets called every time an EventTopic is added to the root WorkItem's collection. Extending this to child WorkItems is left as an exercise to the student. Thus:

public partial class EventVisualizerControl1 : UserControl
{

IVisualizer visualizer;

    [InjectionConstructor]
    public EventVisualizerControl1(IVisualizer visualizer, WorkItem workItem): this()
    {

// Retain injected parameter for future use

this.visualizer = visualizer;

// Create lists for holding event catchers

CatcherList = new List<EventCallCatcher>();

// Show our control in the workspace provided for visualizers

workItem.Workspaces["MainWorkspace"].Show(
this, new SmartPartInfo("Events", String.Empty));

// Hook the added and removed events of the EventTopics collection
// of the CAB root WorkItem

visualizer.CabRootWorkItem.EventTopics.Added +=
new EventHandler<DataEventArgs<EventTopic>>(EventTopicAddedHandler);

}

... rest of the class

}

When an EventTopic gets added to the root WorkItem's collection, it fires the .NET tightly-coupled event named Added, which I catch it in the handler function shown below. I fetch the event topic parameter from the EventArgs parameter and place its name in the first list box for the user to see. Now I want to subscribe to the CAB event so that I can notify the user when it gets fired. The CAB event doesn't send any identifying parameters, such as its name, that its handler function can use to identify it. In order to differentiate the firing of one event from that of another, I have to create a separate listener object for each event. I created the class EventCallCatcher for this purpose, which accepts the event name. I have to maintain a list of these because the CAB event broker system does not maintain a strong reference that would keep the subscriber object alive. Thus:

public void EventTopicAddedHandler(object sender, DataEventArgs<EventTopic> e)
{

// Fetch the event topic out of the EventArgs

EventTopic et = e.Data;

// Add name to first list box

this.listBox1.Items.Add(et.Name);

// Create a new EventCallCatcher to respond to this particular CAB event

EventCallCatcher ecc = new EventCallCatcher(et.Name, this.listBox2);

// Add it to my catcher list so as to maintain a reference to it,
// thereby keeping it from becoming garbage.

CatcherList.Add(ecc);

// Subscribe the CallCatcher to the CAB event.

et.AddSubscription(ecc, "CatchEvent", visualizer.CabRootWorkItem,
ThreadOption.UserInterface);

}

The EventCallCatcher class is shown below. It remembers its name and the list box in which it is to display its results in its constructor. When the call comes in, I check the EventArgs property to see if it has a property called Data, which will be the case if it's an generic EventArgs<> object. It not, I call ToString on the EventArgs itself. If so, I get the Data object and call ToString on it. That's how I get the event's data to display. Finally, I assemble a string to put into the list box: the time the event is fired, the name of the event, the thread from which it is fired, and the data that it contains. Thus:

public class EventCallCatcher
{

string Name;
ListBox lb;

    public EventCallCatcher(string name, ListBox lb)
    {
        Name = name;
        this.lb = lb;
    }

    public void CatchEvent (object sender, EventArgs e)
    {
        string data ;

// Get type of event args

Type t = e.GetType();|
PropertyInfo pi = t.GetProperty("Data");

        if (pi == null)
        {
            data = e.ToString();
        }
        else
        {
            object o = pi.GetValue (e, null) ;
            data = o.ToString();
        }

lb.Items.Add (DateTime.Now.ToLongTimeString() + ": " + Name + ", from Thread " +
System.Threading.Thread.CurrentThread.ManagedThreadId + ", Data: " + data);

}

Finally, I have to tell CAB to use my visualizer in addition to the WorkItem visualizer. I do this by making entries in the App.config file, thus:

Now you've learned something about the visualizer system and the event broker system too. If you'd like to learn more about CAB and SCSF, I'm teaching a public class on it in Waltham MA on July 10-13, 2007. Or I can teach it in-house at your company, which you'd probably find cost-effective if you had five or more attendees. Information on both is online at this link,

Until next time, as Red Green would say, "Keep your stick on the ice."
