Feature Article: The Smart Client Baseline Architecture Toolkit (SC-BAT): A Better Way To Do CAB

As I wrote in the last issue of this newsletter, the Composite UI Application Block (CAB) is an excellent way of organizing the development of a rich client application. As the MFC was a very good prefabrication of a monolithic single-user desktop file-oriented application, so CAB is a very good prefabrication for today’s applications, built of components developed by independent teams, controlled by runtime configuration, delivered over a network, and generally dealing with network operations instead of desktop-based files.  CAB also works well with today's automated testing mechanisms and test-driven development, which we didn't often do back in the MFC days but frequently do today.

The only real drawback to CAB, as I described it in my previous newsletter is that it was somewhat inconvenient to use because it lacked the rapid development tools that today’s programmers demand and generally get in Visual Studio. For example, the original release of CAB didn’t provide a wizard to automatically generate a shell application or a module or an event subscription. So I found myself doing large amounts of cutting and pasting from sample code, reminiscent of how I (dating myself here) used to develop Windows SDK apps in the old days of Charles Petzold – remember how we'd cut and paste a WinMain with its message loop, with GetMessage, TranslateMessage, DispatchMessage, often adding TranslateAccelerators and sometimes PeekMessage to support background processing? Developing for CAB sometimes made me feel that way, as though swimming in tar. It was nice to gain architectural correctness and some amount of prefabrication; I just wanted to reap it much more quickly. If you remember the MFC and subtract its project generation and Class Wizard, you'll have some notion as to how it felt. I tried to improve it somewhat by providing a couple of Visual Studio project templates (again, see last newsletter), but there's a limit to how much any one guy can do.

These problems have now been solved. Microsoft’s new Smart Client Baseline Architecture Toolkit (SC-BAT) provides a much-improved set of tools that greatly expedite your development of CAB projects. SC-BAT also helps you use a some features from the Enterprise library in your CAB applications, mostly logging and exception handling. I'll probably cover these in a future newsletter.  Developing a CAB application is now quicker than developing a non-CAB application, since many architectural decisions are now made for you and supported with prefabricated code.

SC-BAT is currently in its Community Technology Partners stage, from which I expect it to emerge sometime this summer. It's still a little tricky to get your development setup in place, requiring five separate downloads, including CAB itself. I expect this to get easier in future releases, but it's still not too bad, since I’ve collected them here for you. First, if you don’t already have it, you need to download and install CAB from (C# at this link, VB at this link). Second, you have to download and install the Guidance Automation Extensions at this location and the Guidance Automation Toolkit at this location. These are code extensions that allow developers to write better plug-ins for Visual Studio. The wizards and tools in SC-BAT are based on these, and I might devote an edition of this newsletter to them if I get enough requests for it. Third, you have to download and install the January 2006 Enterprise Library at this location. Finally, you must download and install the SC-BAT at this location. To install SC-BAT into your Visual Studio 2005 environment, open the readme file for the last download and follow its directions EXACTLY.

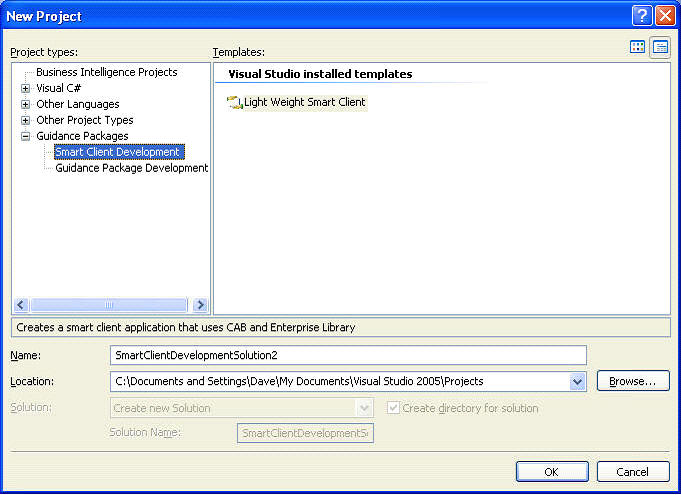

After you’ve done all this, you can start generating an SC-BAT project. Start Visual Studio, select File – New Project from the main menu, and you’ll find the Smart Client Development item under the Guidance Packages folder, as shown in the screen shot below. You can then generate project of the type called Lightweight Smart Client, which I will now discuss. (What a heavyweight smart client would be, the tools do not say).

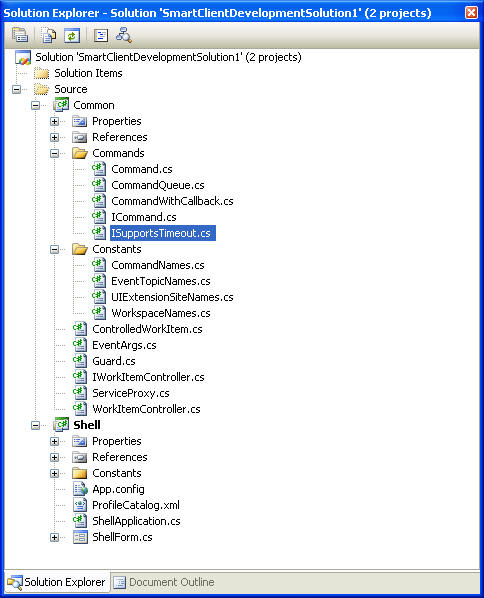

When you generate this type of project, you will find a number of new and interesting files in your Solution Explorer, which looks like the screen shot below. I will now discuss some interesting parts of it.

First, look at the folder labeled Common. This is a frequently-used design pattern in which items that are shared among all components are placed in a separate assembly. This assembly is then made available to any project team that needs to develop code for the CAB project. All developers can then use the classes and definitions inside it without having to know anything about the other components of the application. And the definitions are kept in one place so they (hopefully, if you adhere strictly to this design pattern and resist the urge to allow back-channel sharing via other mechanisms) can’t get skewed between one project team and another. For example, any user interface extension sites exposed by the shell need to have their names known by the modules and work items that will be doing the actual extending. Instead of just sprinkling these string names through the code, you can now put them in the Constants object of the Common folder. You do the same for other shared development objects, such as commands and events.

This is the sort of thing that I meant earlier when I said that some “architectural decisions were already made for you.” You don’t have to sit around scratching your head, saying to yourself, “Now how the hell are we going to provide a single point of reference for command names?” You would probably have come up with something like this, but it’s already done for you in a reasonable way, so it’s easier to simply accept what SC-BAT has done for you instead of taking the trouble to undo it and then write your own. It saves time, and also makes your code similar to that of other developers, which again saves time and reduces the chance of errors.

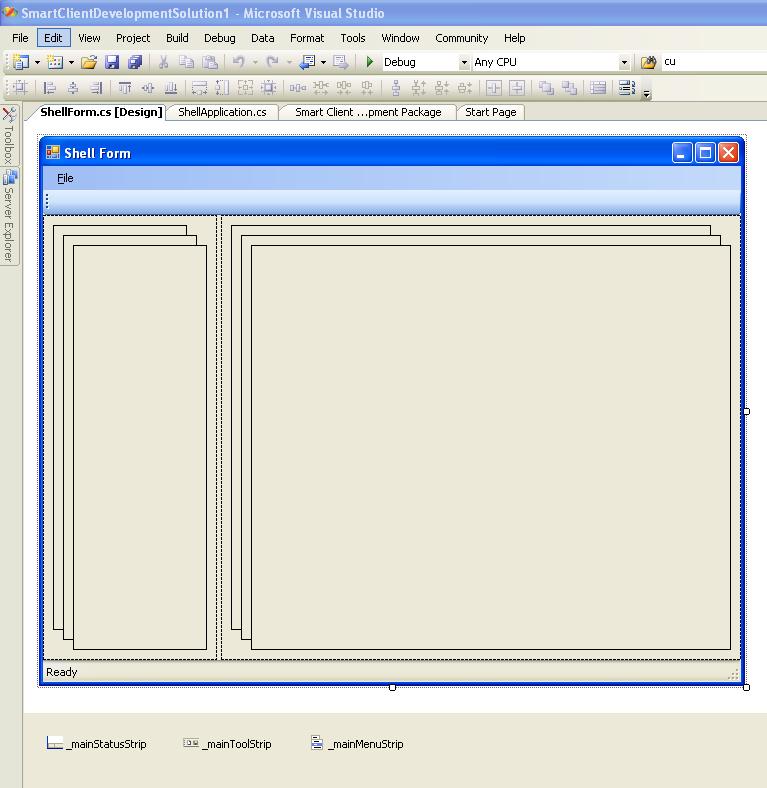

In a similar manner, the shell application and shell form are likewise generated for you and set up the way that most app designers will want them most of the time. The shell form looks like this:

It contains a main menu strip, a tool strip, and a status strip. It also comes with two deck workspaces on it, not because you’ll necessarily want to use this type of workspace in this manner, but rather to demonstrate the sort of things that are possible rather than leaving a blank.

In the form’s code, you’ll see that the status strip’s main message area has been connected to a CAB event controlled by the event broker service. The name of the event is defined in the Common assembly, so the string is nicely shared among all developers that use it. And this means that changing the message in the status string does not require the component firing the event to know anything about the internal implementation used in the shell. Again, this is nothing that you couldn’t have done yourself, and you probably would have eventually gotten around to doing something similar, but here you are handed an implementation that is a) architecturally correct for most applications most of the time, so you don’t have to spend your time and effort designing it and possibly getting it wrong, and b) already implemented for you, so you don’t have to spend your time and effort implementing it and possibly getting it wrong, and c) done the same way in every project, so you will understand other developers code and they will understand yours. Thus:

[EventSubscription(EventTopicNames.StatusUpdate, ThreadOption.UserInterface)]
public
void StatusUpdateHandler(object sender, EventArgs<string> e)
{
    _statusLabel.Text = e.Data;
}

 The shell application also contains pre-generated code that saves you time and effort. For example, the class types of the shell work item and shell form are automatically put into the generic angle-brackets of the main application class, so you don’t have to edit the code generated for you by the project wizard as CAB developers had to do in the early days. It also automatically adds a hander for unhandled exceptions (do I sense an oxymoron here?) so that you don’t forget it. This exception handling code uses the Exception Handling Block from patterns and practices, so it represents Microsoft’s current view of best practice for doing this sort of thing. I’ve already written about the advantages of doing it this way, so I won’t repeat that point, other than to say that here is another instance. Here are some portions of the shell application's startup code:

public class ShellApplication : FormShellApplication<WorkItem, ShellForm>
{

    [STAThread]
    static void Main()
    {

        AppDomain.CurrentDomain.UnhandledException +=
            new UnhandledExceptionEventHandler(AppDomainUnhandledException);

        Application.SetCompatibleTextRenderingDefault(false);

        try
        {
            new ShellApplication().Run();
        }
        catch (Exception ex)
        {
            HandleException(ex);
        }
    }

    private static void AppDomainUnhandledException(object sender,
        UnhandledExceptionEventArgs e)
    {
        HandleException (e.ExceptionObject as Exception);
    }

    private static void HandleException(Exception ex)
    {
        if (ex == null)
            return;

        ExceptionPolicy.HandleException (ex, "Default Policy");
        MessageBox.Show ("An unhandled exception occurred, and the application is terminating.");
        Application.Exit ();
    }
}

The shell application also overrides the AfterShellCreated method, in which it registers the menu strip, the tool strip, and the status strip, as extension sites that other work items can manipulate. Again, this is what most developers will want most of the time, and it’s done using the names from the Common assembly. If you don’t want to allow extensions of one or more of these sites, it’s a trivial matter to comment them out. The code looks like this:

protected override void AfterShellCreated()
{
    base.AfterShellCreated();

    RootWorkItem.UIExtensionSites.RegisterSite(

UIExtensionSiteNames.MainMenu, this.Shell.MainMenuStrip);

    RootWorkItem.UIExtensionSites.RegisterSite(

UIExtensionSiteNames.MainStatus, this.Shell.MainStatusStrip);

    RootWorkItem.UIExtensionSites.RegisterSite(

UIExtensionSiteNames.MainToolbar, this.Shell.MainToolbarStrip);

}

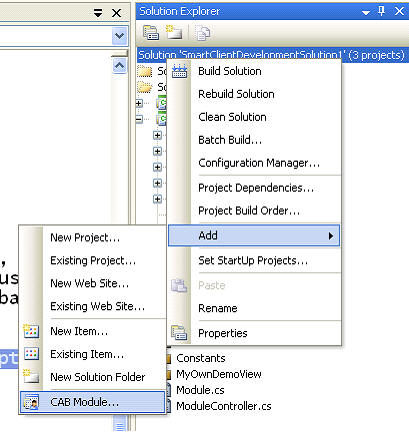

Now that we’ve examined the shell and common folders, let’s consider the case of adding a module to the CAB project. This is now easy. When you right-click on the solution and select Add, you’ll see that the menu now provides the option of  a CAB Module, as shown in the screen shot below.



If you select it, you’ll , a wizard will ask for its name, then generate code similar to that shown below.  It adds a new namespace to that of the root project, then adds a new class deriving from ModuleInit, the default implementation of the IModule interface. It provides an injection constructor that fetches and stores the root work item, again, what most modules want most of the time. It also overrides the Load method, and provides code that creates and adds a new work item to the root. Thus:

namespace LightweightSmartClient1.MyOwnModule
{
    public class Module : ModuleInit
    {
        private WorkItem _rootWorkItem;

        [InjectionConstructor]
        public Module([ServiceDependency] WorkItem rootWorkItem)
        {
            _rootWorkItem = rootWorkItem;
        }

        public override void Load()
        {
            base.Load();
            _rootWorkItem.WorkItems.AddNew<ControlledWorkItem<ModuleController>>();
        }
    }
}

The module uses the new ControlledWorkItem class, which is defined in the Common assembly (note that this location may change in the final release). This represents the evolution of architectural thought in the CAB world in which the WorkItem class is seen as primarily a container of items for a use case – of smart parts, of extension sites, of views, etc., and not a location for business logic code. In general, the Controller class is seen as the location for this code. The ControlledWorkItem class therefore automatically creates a Controller-derived class (LightweightSmartClient1.MyOwnModule.ModuleController in the example above) when it is created, and calls its Run() method to tell it to start up. This method is shown in the code below. You can see that there are now new callouts for doing useful things like extending the toolbar and menus, thus:

 public class ModuleController : WorkItemController
{
    public override void Run()
    {
        AddServices();
        ExtendMenu();
        ExtendToolStrip();
        AddViews();
    }

    private void AddServices()
    {
            //TODO: add services provided by the Module. See: Add or AddNew method in
    }

    private void ExtendMenu()
    {
            //TODO: add menu items here, normally by calling the "Add" method on
    }

    private void ExtendToolStrip()
    {
            //TODO: add new items to the ToolStrip in the Shell
    }

    private void AddViews()
    {
            //TODO: create the Module views, add them to the WorkItem and
            // show them in a Workspace.

    }
}

With the release of SC-BAT, CAB has become both more rigorous architecturally and also easier to use. That’s a rather neat trick. Because both of these qualities operate in tandem, I expect CAB and SC-BAT to become the standard for implementing rich client applications on the .NET platform, as the MFC became the standard for writing single-desktop file-related applications a decade ago.

As always, there is far too much to discuss in any single issue of this newsletter. For example, there it a wizard for adding event publications and subscriptions, which time and space won’t allow me to do more than mention the existence of. If you’d like to learn more about using CAB and SC-BAT applications, you can come to my public class at the Microsoft Technology Center in Waltham on July 10-13. Or you can have me teach it in-house at your company.

Until next time,  as Red Green  would say, "Keep your stick on the ice."
